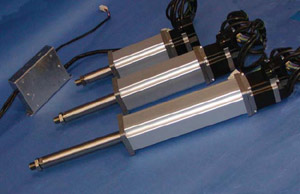

Finally an affordable programmable electric actuator!
The SCN6 series of Dyadic's Mechatronics Cylinder line offers a wide range of speed/thrust combinations and enviromental ratings. The line includes models rated for 20, 40, 50, and 60kgf of peak thrust, with top speeds from 100-200mm/s. Dyadic has developed the linear actuator drive mechanism such that the screw and nut are optimized for high accuracy, long life and low cost while delivering high speed and peak thrust. This blend of low-cost and high performance could only have been realized by the advanced technology of Dyadic Systems. These new product concepts give engineers a wider range of options to eliminate over-design.
Mechatronics Cylinders are available in a range of stroke lengths and are constructed using an extruded aluminum body with 303 stainless for the shaft and rod tip. IP-54 rated units include a dust wiper on the shaft and a muffler on the body, as well as silicone sealing all over the back end of the unit. Actuators can easily be operated via 24VDC signals from PLCs or relays, and can be connected in networks of up to 16 axes.
|
 |
- Includes closed loop servo motor, servo amplifer and control
- Independently programmable position, speed, acceleration, force, etc.
- Easy to use; make a few 24 VDC connections and program in 15 minutes!
- Program from handheld pendant or from PC
- Virtually infinite positioning possible
- Networkable up to 16 axes
- DeviceNet and CC-Link gateways available
- 4 combinations of motor and screw pitch available (20, 40, 50, 60kgf thrust)
- 50-300mm stroke versions
- Repeatability as good as ±0.01mm
- 200mm/sec max. speed
- IP40 and IP-54 environmental protection available
- 303SS rod and tip-thread
|
